| Brand Name: | Serworld |
| Model Number: | TGSS100 |
| MOQ: | 1 SET |
| Price: | USD100-100,00 |
| Delivery Time: | 45-60days |
| Payment Terms: | LC/TT |

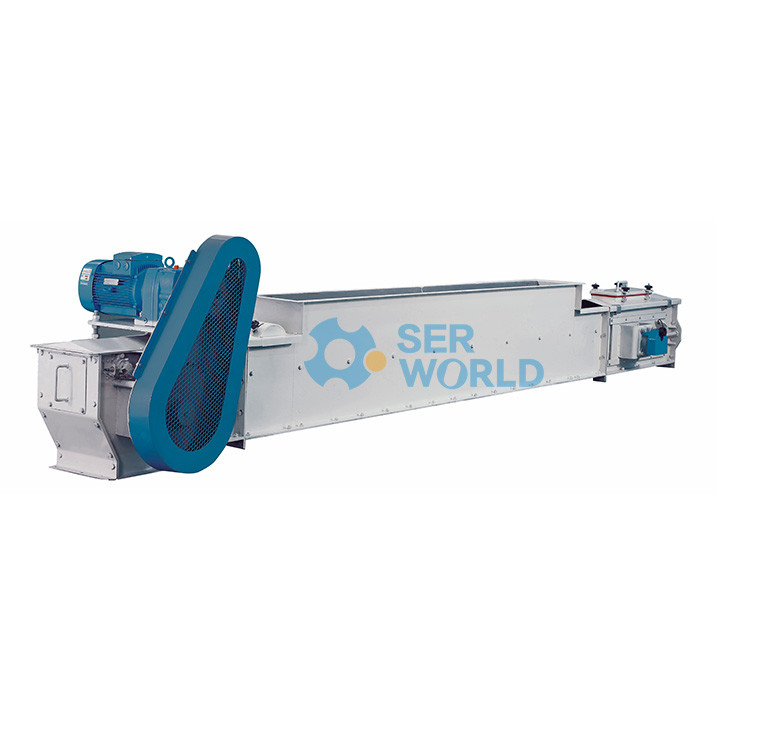

Compact Fast And Durable Conveying Machine For Feed Food And Other Various Materials
Performance Features:
(1) The bottom plate of conveyor is fixed on the bottom floor by bolt with forging chain and refined wear-resistant industrial plastic scraper;
(2) Low noise, less wear, easy replacement of bottom plate and side plate, long service life;
(3) Simple and compact structure, convenient installation;
(4) The material is conveyed in closed tank of machine with good sealing quality;
(5) Satisfying the requirement to have more inlets and outlets to feed and discharge material and to convey material in different directions.
Technical parameters:
|
Model |
TGSS 100 |
TGSS 125 |
TGSS 150 |
TGSS 180 |
|
Capacity(m3/h) |
80 |
120 |
150 |
250 |
|
Power(kw) |
Power is determined by the length. |
|||
|
Chain pitch(mm) |
100 |
100 |
100 |
200 |
|
Chain linear velocity(m/s) |
0.5 |
0.5 |
0.5 |
0.6 |
|
Scraper gap(mm) |
400 |
400 |
400 |
400 |
|
Maximum length(m) |
55 |
60 |
65 |
70 |
