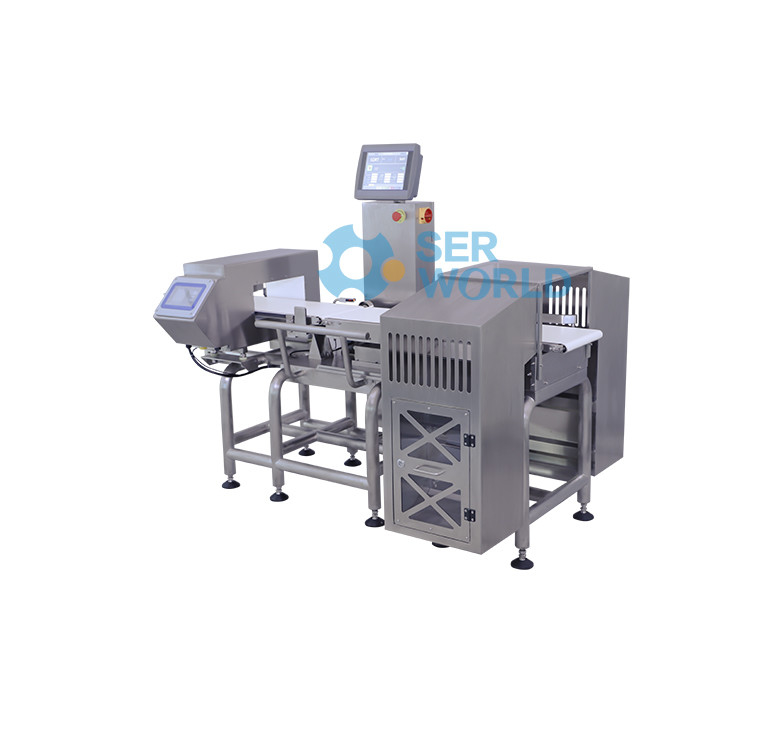

Check Weigher
Application scope:
It is used to check whether the product weight matches the target weight, and eliminate the device to select unqualified products.
Performance Features:
(1) Beautiful design, easy to maintain, all 304 stainless steel round frame design, good weldability, minimize plane and gap, reduce dust, easy to clean.
(2) 10.4 inch touch screen, different language selection, simple operation.
(3) Configurable security access level intuitive menu operation and alarm error information make maintenance easier.
(4) Computer remote control improves work efficiency and makes it easier for employees to maintain the network system,Saving data in excel format via USB or PC helps to evaluate the effect, improve marketing efficiency, strengthen management, analyze problems and avoid production risks.
(5) Connect external equipment through communication interface to realize online transmission of weighing data and production automation.
(6) Different elimination devices are used for different test materials.
Technical parameters:
| Model | AC-7C(220) |
| Weighing range | 5-1000g |
| Speed(pack/min) | 60-150pack/min |
| Weighing accuracy | ±0.5-1g |
| Belt width | 220mm |
| Weighing belt size | 220mm*450mm |
| scale | 0.1 |
| Product preset parameters (types) | 99 |
| Date export | USB/Network transmission |
| Communication protocol | Modbus TCP |
| Gross weight / net weight | 100kg/230kg |
| Exclusion device | Swing arm/slide/pull rod /blow |
| Air pressure requirements | 0.3-0.6mpa |
| Voltage | 220V,50/60Hz,single-phase |
| Power | 300w |
Optional models
| Model | AC-7C(150) | AC-7C(220) | AC-7C(330) | AC-7C(430) |
| Belt width(mm) | 150 | 220 | 330 | 430 |
| Weighing belt size(mm) | 150*250 | 220*450 | 330*500 | 430*500 |
| Weighing range | 1-500g | 5-1000g | 0.01-10kg | 0.01-30kg |
| Speed(pack/min) | 80-160pack/min | 60-150pack/min | 30-80pack/min | 10-60pack/min |
| Weighing accuracy | ±0.1-0.8g | ±0.5-1.0g | ±1-3g | ±1-8g |
