| Brand Name: | Serworld |
| Model Number: | SWYLL15×15 |
| MOQ: | 1 SET |
| Price: | USD10,000-100,000 |
| Delivery Time: | 45-60days |
| Payment Terms: | LC/TT |

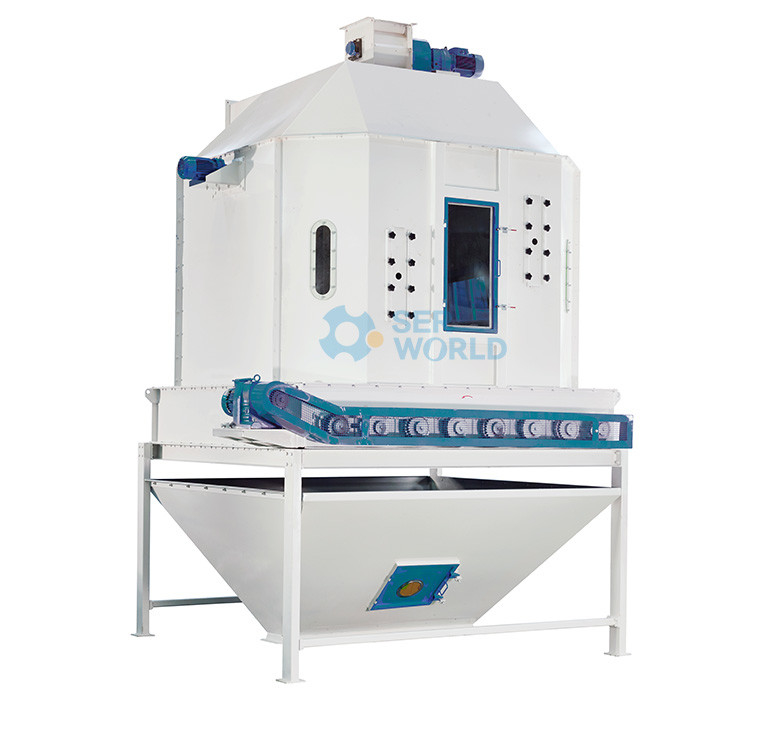

Cooling And Variable Frequency Discharging With Pellet Cooler Machine For Various Granular Material
Performance Features:
(1) Good cooling performance through counter-flow motion between cooling air and granular material cooling material from the bottom up to avoid crack of granule;
(2) The temperature of material after cooling is ≤ 5℃ higher than ambient temperature and the drying rate is ≥ 2% so as to extend shelf life of feed;
(3) The series adopts variable frequency impeller discharging device;
(4) Material is automatically cleaned up to avoid crossing contamination;
(5) Widely applied to cooling of various granular material.
Technical parameters:
|
Model |
SWYLL15×15 |
SWYLL20×20 |
SWYLL24×24 |
SWYLL28×28 |
|
Capacity(t/h) |
5 |
10 |
15 |
30 |
|
Cooling time(min) |
8-15 minutes |
|||
|
Temperature cooling(℃) |
≤ room temperature ＋5℃ |
|||
|
Power(kW) |
1.5 |
2.2 |
3.0 |
5.5 |
|
Fan pressure(Pa) |
2000 |
2000 |
2000 |
2000 |
|
Fan type |
4-72-11NO-5A/7.5kw |
4-72-11NO-6C/15kw |
4-72-11NO-8C/30kw |
4-72-11NO-12C/37kw |
