| Brand Name: | Serworld |
| Model Number: | SWFL20×20 |
| MOQ: | 1 SET |
| Price: | USD10,000-100,000 |
| Delivery Time: | 45-60days |
| Payment Terms: | LC/TT |

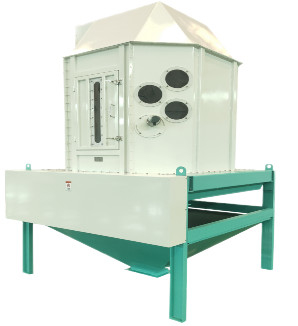

High Efficiency Feed Pellet Cooler Flap Cooler Pellet Feed Cooling Machine For Better Cooling And Discharging Of Granular Feed With Wide Application
Performance Features:
(1) Reverse motion between cooling air and granular material is to cool material from the bottom up with better cooling performance;
(2) Thanks to the processing technology of mechanical bending and welding, the main part is of good sealing quality;
(3) The flap cooler is controlled by flexible hydraulic transmission system with adjustable discharging speed and uniform and smooth discharging performance;
(4) The machine is of high automation that both small and big granules can be discharged properly;
(5) Widely applied to cooling of various materials such as granular feed,extruding feed and pulverized feed especially extruding feed.
Technical parameter :
|
Model |
SWFL20×20 |
SWFL24×24 |
SWFL28×28 |
|
Capacity(t/h) |
10 |
15 |
30 |
|
Cooling time(min) |
8-15 |
||
|
Temperature cooling(℃) |
≤ room temperature ＋5℃ |
||
|
Power(kW) |
2.2 |
3.0 |
5.5 |
|
Fan Pressure(H20mm)(Pa) |
200 |
200 |
200 |
|
Fan type |
4-72-11NO-6C/15kw |
4-72-11NO-8C/30kw |
4-72-11NO-12C/37kw |
