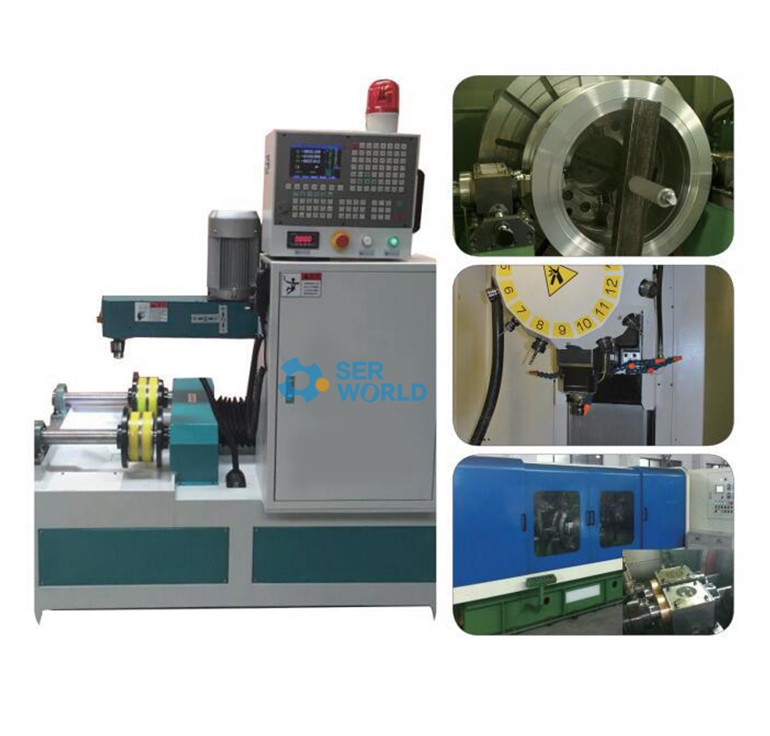

Die Chamfering Machine For Feed Processing Machinery Pellet Mill
Product Description :
Die Chamfering Machine is an efficient chamfering equipment designed specifically for feed processing machinery, mold manufacturing, and related industrial
fields. It is mainly used for precision chamfering, deburring, and bevel processing of mold edges. It adopts an automated control system and high hardness cutting
tools, which can quickly process various metal materials (such as alloy steel, stainless steel, etc.), ensure smooth and flat mold edges, and improve mold service life
and production efficiency.
Scope of application:
Suitable for precision chamfering requirements of industrial molds such as feed machinery molds, food processing equipment molds, biomass pellet molding
molds, etc., especially suitable for mass production scenarios.
Core advantages:
(1) Efficient and precise: Automated operation combined with CNC system achieves high-precision machining of ± 0.1mm, which is more than three times more
efficient than traditional manual labor;
(2) Strong durability: using industrial grade cutting tools and rigid structure design, it can operate stably for a long time and adapt to high-intensity continuous
operation;
(3) Easy to operate: The human-machine interface is user-friendly, supports parameterized settings, and allows for one click switching between different mold
specifications, reducing the operating threshold.
Technical parameter :
| Model | Ordinary type DJ550 | Enhanced typeDJ370 |
| Movement distance of front to back(mm) | 560 | 380 |
| Movement distance from top to bottom(mm) | 330 | 270 |
| Machining hole range | 4-18 | 2-12 |
| Ring die size (inner diameter)(mm) | 300-850 | 250-680 |
| Positioning accuracy(mm) | 0.02 | 0.02 |
| Spindle speed(r/m) | 0-3000 | 0-2000 |
| Total power(kw) | 5 | 4 |
| Control interface | Chinese/English | Chinese/English |
| Machine size (mm) | 2200*900*1600 | 1750*900*1700 |
| Machine weight(kg) | 1100 | 900 |
