| Brand Name: | Serworld |
| MOQ: | 1 SET |
| Price: | USD100-100,00 |
| Delivery Time: | 45-60days |
| Payment Terms: | LC/TT |

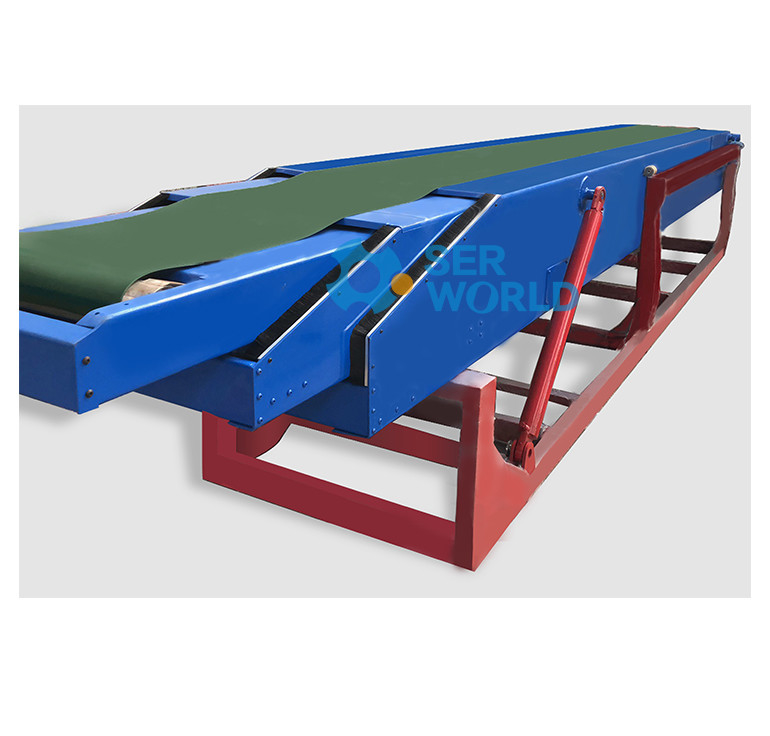

Retractable Belt Conveyor
Performance Features:
(1) Retractable belt conveyors are widely used in ports, docks, stations, airports, warehouses, mines, posts and telecommunications, electrical appliances, light
industry, food, tobacco and other industries to complete the transmission and loading and unloading of goods, greatly improve work efficiency, reduce labor intensity,
reduce the damage rate of goods, and shorten the loading and unloading time of vehicles, ships and aircraft. It is an effective equipment for enterprises to reduce
product costs, improve efficiency and product quality.
(2) The fuselage is of steel frame floor type, with simple structure and convenient installation, disassembly and alignment.
(3) The whole machine adopts round idlers.
(4) The belt tensioning device set at the fixed part of the fuselage is tensioned manually.
(5)The friction coefficient of the outer layer of the drive drum is large, and the initial tension is small, and the belt tension is also small.
Technical parameter :
| Model | 600mm-4-13500mm |
| Conveying capacity(t/h) | 60 |
| Conveying length(m) | 13.5 |
| Belt speed(m/min) | 15-36 frequency control |
| Length of storage tape(m) | 40 |
| Drive drum diameter(mm) | Φ320 |
| Diameter of unloading diversion drum(mm) | Φ120 |
| Diameter of tail diversion drum(mm) | Φ120 |
| Idler diameter(mm) | Φ60 |
| Conveyor belt specification | 680S full-core flame retardant tape |
| Width(mm) | 600 |
| Main motor power(kw) | 2×3 |
| Main motor voltage(V) | 380 |
| Reducer model | GR67-Y3KW-4P |
| Reducer speed ratio | 17.95 |
| Overall dimension (length × wide × High)(mm) | 13500×1270×1350 |
| Weight(kg) | 4000 |
