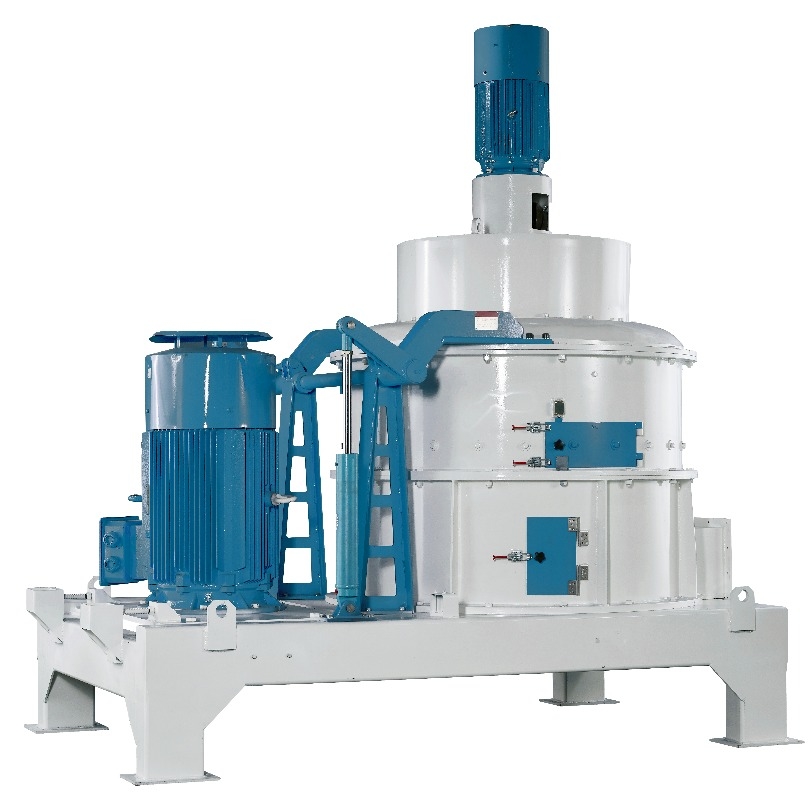

L130 Feed Grinding Machine Ultra Fine Pulverizer For Optimal Performance
1. Versatile Applications:
The SWFL Series Vertical Ultra-Fine Grinder is an advanced milling solution engineered for feed manufacturers of all scales. Designed to handle pre-processed materials such as corn, sorghum, grains, and fishmeal, it integrates seamlessly with upstream processes like screening, magnetic separation, and blending. This machine excels in producing ultra-fine powders, making it especially ideal for aquatic feed formulations (e.g., shrimp, eel, soft-shelled turtle) and feeds for young animals requiring precise particle sizes.
2. Key Advantages:
Space-saving structure with a clean, modern design.
Combines air classification, gravity separation, and secondary grinding within a single chamber for efficient, one-pass ultra-fine processing.
Particle size can be fine-tuned between 60 and 200 mesh to meet specific feed requirements.
Equipped with wear-resistant carbide hammers for extended service life.
Maintains a low processing temperature to preserve essential nutrients and functional properties.
Integrated feeder removes ferrous and large hard contaminants before grinding.
Broadly applicable to ultra-fine milling of various inputs such as corn, wheat, dried fish, shrimp shells, MSG, glucose, pharmaceuticals, and activated carbon.
3. Technical parameters:
|
Model |
SWFL130 |
|
Rotor Diameter(mm) |
1300 |
|
Rotor Speed (r/min) |
1700 |
|
Power (kw) |
(132/160)+15+1.5 |
|
Capacity(t/h) |
3-6 |
4. Structural diagram of vertical ultral-fine pulverizer
1. Main motor 2. Hydraulic opening mechanism (optional)
3. Machine base 4. Grading pulley support
5. Observation hole 6. Pedestal
7. Bearing pedestal of grading pulley
8. Grading pulley 9. Belt pulley of main shaft
10. Main shaft seat 11. Grinding disc 12. Toothed ring
13. Split-flow hood 14. Central support 15. Upper cover
16. Feeding system 17. Coupling
18. Supporting seat of grading pulley motor
19. Grading pulley motor
5. Processing flow and configuration
| NO. | Q'ty | Name |
|
| 3001 | 1 | High level indicator | |
| 3002 | 1 | Grinding bin | |
| 3003 | 1 | Low level indicator | |
| 3004 | 1 | Pneumatic Slide Gate | |
| 3101 | 1 | Vertiacl Pulverizer | |
| 3102 | 1 | Air duct | |
| 3103 | 1 | Cyclone discharger | |
| 3104 | 1 | Air lock | |
| 3105 | 1 | Silencer | |
| 3106 | 1 | Centrifugal fan | |
| 3107 | 1 | Dust collector | |
| 3108 | 1 | Air lock | |
| 3109 | 1 | Screw conveyor | |
| 3110 | 1 | Surge Hopper | |
| 3111 | 1 | Two-way conveyor | |
| 3112 | 1 | Spuare plan sifter | |
| 3113 | 1 | Screw conveyor | |
| 3114 | 1 | Pneumatic three-way gate |
6. On site shows:
|
|
|
