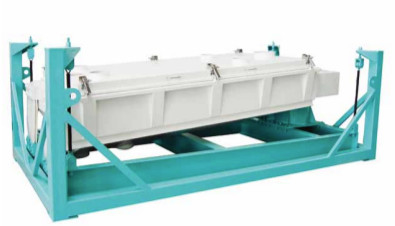

Large Capacity Rota Shake Sifter Vibration Screen Feed Production Equipment

Large Capacity Rota Shake Sifter Vibration Screen Feed Production Equipment

Brand Name:	Serworld
Model Number:	SWHFS100
MOQ:	1 SET
Price:	USD10,000-100,000
Delivery Time:	45-60days
Payment Terms:	LC/TT

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ISO

Screen Size(mm):

1000×2130

Number Of Layer:

Size Of Hole(Mesh):

Upper Screen 2 Mesh, Middle Screen 6 Mesh And Lower Screen 12 Mesh.

Power(kw):

2.2

Capacity(t/h):

Power:

3.7kW

Material:

Stainless Steel

Application:

Grain Cleaning

Capacity:

1000kg/h

Frequency:

50Hz

Air Volume:

2000m3/h

Model:

SC-100

Voltage:

380V

Screen Layers:

Cleaning Efficiency:

99%

Packaging Details:

Wooden Pallet

Supply Ability:

10 sets can be produced in 45 days

Highlight:

Large Capacity Rota Shake Sifter

10t/h Rota Sifter

Vibration Screen Feed Production Equipment

Product Description

Large Capacity Rota-Shake Sifter Vibration Screen Feed Production Equipment

Performance Features

Steady and reliable operation
Optimized sieve structure for rapid and easy sieve changes
Special balancing method reduces vibration with imported SKF bearings for low noise and stable transmission
Integrates circular motion, ellipse motion, and reciprocating linear motion characteristics for large capacity, high sieving efficiency, and low energy consumption

Technical Parameters

Model	SWHFS100	SWHFS125	SWHFS150	SWHFS180
Screen Size (mm)	1000×2130	1250×2400	1500×2800	1800×3200
Number of Layers	3	3	3	3
Size of Hole (Mesh)	Upper screen 2 mesh, middle screen 6 mesh, lower screen 12 mesh
Power (kW)	2.2	3	4	5.5
Capacity (t/h)	10	15	20	30

Common Problems and Corrective Actions

1. Uneven Material Distribution on the Upper Screen

Possible Causes

Improper inlet position adjustment
Incorrect position of the material distribution plate
Wrong motor rotation direction

Solutions

Adjust the feeding inlet position
Adjust the material distribution plate
Ensure the two vibration motors rotate in opposite directions

2. Excessive Material on the Upper Screen

Possible Causes

Excessive feeding volume
Screen mesh blockage
Screen hole size too small

Solutions

Reduce feeding quantity
Clean the screen surface regularly
Replace with a larger mesh size if necessary

3. Excessive Good Material in Oversized Discharge

Possible Causes

Feeding volume too high
Screen blockage
Screen hole size too small
Vibration direction angle too small

Solutions

Adjust feeding rate
Clean blocked screen mesh
Use a larger screen opening
Increase the vibration direction angle

4. Excessive Impurities in Fine Material

Possible Causes

Lower screen mesh opening too large
Damaged screen mesh
Poor sealing between screen frame and screen body

Solutions

Replace damaged screen mesh
Select suitable mesh size
Check and eliminate sealing gaps

5. Abnormal Noise Inside the Machine

Possible Cause

Loose screen frame locking structure

Solution

Tighten all fastening components

6. Reduced Amplitude or Abnormal Vibration

Possible Causes

Worn or aged rubber springs
Damaged vibration motor bearings
Two motors rotating in the same direction

Solutions

Replace rubber springs
Replace motor bearings
Ensure motors rotate in opposite directions

7. Material Does Not Move Forward Properly

Possible Causes

Incorrect motor rotation direction
Small screen inclination angle
Insufficient vibration amplitude

Solutions

Adjust motor rotation direction
Increase screen inclination angle
Adjust vibration amplitude properly

8. Low Screening Capacity

Possible Causes

Improper vibration direction angle
Slow material movement speed
Poor screening efficiency

Solutions

Adjust vibration motor angle
Optimize material flow speed
Balance screening efficiency and production capacity
