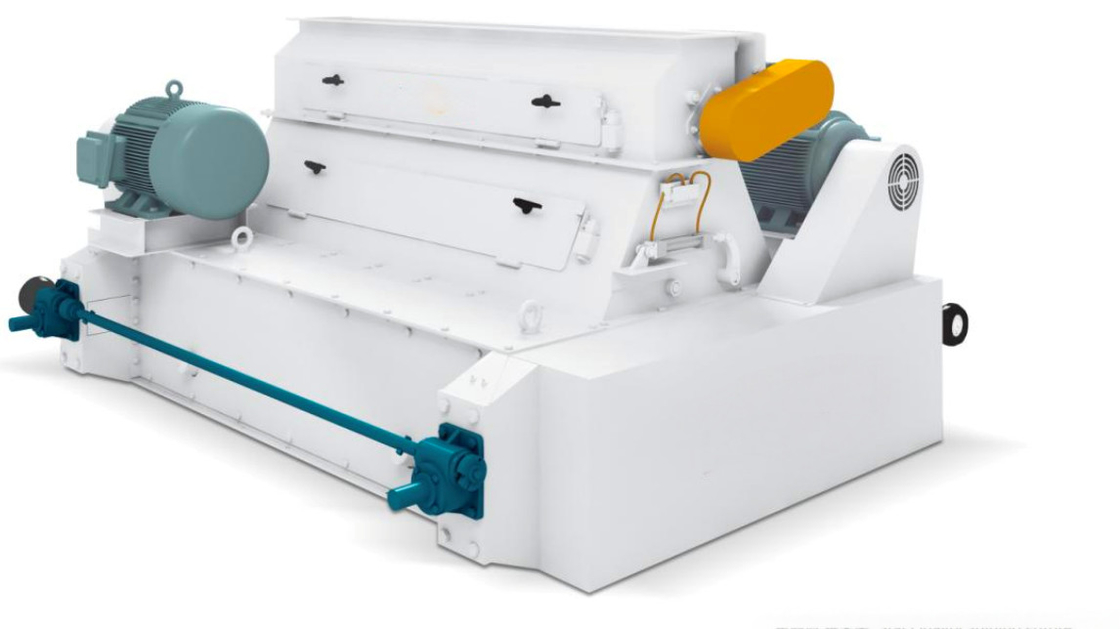

Compact Customizable Pellet Crumbler Machine For High Output Crushing Needs

Compact And Customizable Pellet Crumbler Machine For High Output Crushing Needs​

   Our crumbler selection is diverse and can be specially customized to meet different crushing size and installation space requirements.

Main Features and Functions

• Compact structure, high output, low power consumption; - Good crushing effect, less powder;
• Toothed-roller feeding mechanism with uniform feed flow; pneumatic flap control unit.
• High quality cold hardened alloy crushing rolls;
• Roller body disc spring protection;
• Synchronized adjustment device for crushing rolls, easy to adjust roll parallelism; rotating instrument handwheel for precise adjustment of roll spacing; optimized combination of transmission and belt tensioning mechanism.

    The impeller is driven by a speed-regulating motor and by a frequency conversion device, by changing the rotational speed of the feeding impeller, the size of the feeding volume is adjusted, which can greatly reduce the influence of the cooler interval discharge, effectively shorten the idling time, and the flow of material is uniform, thick and thin, and not easy to be blocked.The impeller is driven by a speed-regulating motor and by a frequency conversion device, by changing the rotational speed of the feeding impeller, the size of the feeding volume is adjusted, which can greatly reduce the influence of the cooler interval discharge, effectively shorten the idling time, and the flow of material is uniform, thick and thin, and not easy to be blocked.

   When the material does not need to be crushed, the bypass can be opened; the cylinder is in the open state, the flap turns forward and the material directly enters the bypass.

    By rotating the material control door adjusting handle or handwheel to adjust the size of the material control door flap opening and closing, to adjust the flow of crushed material, so as to play a role in regulating the output.

   Unique splitter box design with internal flap controlled by pneumatic cylinders, thus realizing the diversion of excess material from the bypass channel when crushing is not required.

   The observation door is equipped with a travel switch.

   During shutdown, the observation door can be opened to observe the use of the crushing rollers and the internal condition of the equipment; during work, the door must be closed; if the door is opened, the travel switch will give a signal to shut down the equipment automatically.
